Pinhole Detector To Test Protective Coatings Flaw Of Oil And Gas Pipelines, Cables, Enamel, Metal Tank

Pinhole Detector To Test Protective Coatings Flaw Of Oil And Gas Pipelines, Cables, Enamel, Metal Tank

Details:

【Function】

HD-201 Porosity Holiday detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment.

【Characteristic】

1,Low power consumption, small size, light weight；
2,Simple operation；
【Main technical index】
1,Measuring range:

HD-201A:0.03-3.5mm(Epoxy coal tar pitch medium)
HD-201B:3.5-10.mm(Petroleum asphalt medium)
HD-201C:0.03-10.mm(Epoxy coal tar pitch,Petroleum asphalt medium)

3,Output high voltage:

HD-201A:0.5-15KV

HD-201B:15-35KV
HD-201C:0.5-35KV

4,Display:pointer

5,High voltage control system:Ordinary potentiometer adjustment

6,DC supply:12v

7,Consumption:＜5w

8,Alarm delay:1-2s

9,High voltage probe:Electronic high voltage generator

10,Packing:metal chest

11,Main dimension: 165mm×155mm×68mm

12,Weight:1.5kg(Including battery)

【Principle】
The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.

【Test voltage schedule】

【Standard delivery】

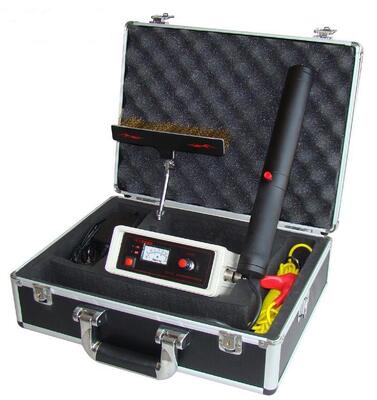

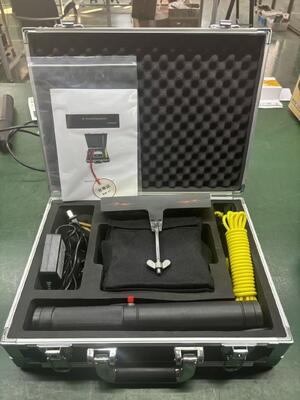

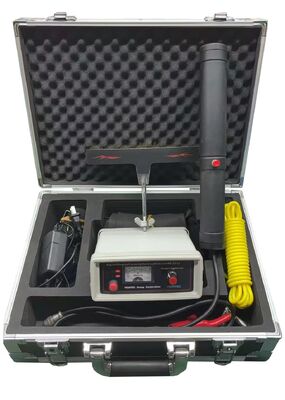

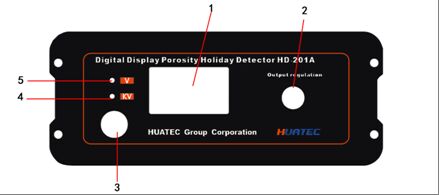

Main unit

High voltage gun

High voltage gun

Charger

Long cable

Short cable

Connecting magnet

Earth rob

high pressure gloves

Instruction manual

HUATEC calibration certificate
